Hepa Filter
800 INR/Square Foot
Product Details:
- Size 460X460X150 MM
- Usage Air Filter
- Product Type Filter
- Condition New
- Material Aluminium
- Construction Wire Mesh
- Filtration Grade Hepa Filter
- Click to View more
X
Hepa Filter Price And Quantity
- 800 INR/Square Foot
- 50 Square Foot
Hepa Filter Product Specifications
- New
- Active Carbon
- Ractangulor
- Filter
- Aluminium
- Hepa Filter
- Wire Mesh
- Air Filter
- 460X460X150 MM
Hepa Filter Trade Information
- Cash Advance (CA) Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Cash in Advance (CID) Cheque
- 500 Square Foot Per Day
- 3-4 Days
- Australia North America South America Eastern Europe Western Europe Middle East Africa Asia Central America
- All India
Product Description

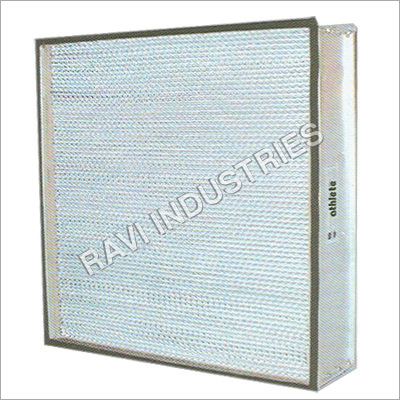

ATHLETE HEPA FILTERS
ATHLETE HEPA filters are manufactured under strict quality control and are tested and certified on our cold D.O.P. test facility to meet ISO 14644 cleanroom standards.
SPECIFICATION | |
| Efficiency | 99.97% for filtering out particles down to 0.3 microns, which is rated as H13 in accordance to EN 1822 standard |
| Filtration Class | Fed 209E Class 100 or more recent ISO class 5 in accordance to ISO defined 14644 cleanroom standards can be achieved using this filter |
| Frame Type | Available in deep pleated flange or box type |
| Frame Material | Standard model is constructed in anodized aluminium frame. SS 304/Galvanized steel frame with or without powder coating are also available on order. |
| Filter Media | 100% Sub-Micronic boro-silicate glass fibre media |
| Gasket | Neoprene rubber or silicone coated gasket is used |
| Separators | Corrugated aluminium seperators are used |
| Sealant | Epoxy resin or Polyurethane based sealant is used |
| Face Guard | An optional perforated metal or expanded metal guard (with or without powder coating) to protect the face of the filter, is available on request |
| Pressure Drop | Initial pressure drop ~20mm WG and recommended final pressure drop is ~60mm WG |
| Operating Conditions | Filter can withstand temperature up to 110oC and relative humidity of 100% |
*High temperature HEPA Filters for hot air oven application are also available
*High flow and super high flow air filter are also available on order
*HEPA/ULPA filters with different filtration efficiency ratings in accordance to EU/ISO 14644 standards are also available on request
Applications:
HEPA filters have a wide range of applications, some of them are as follows:
- Cleanrooms and factories for semiconductor manufacturing,
- The food and beverage industry
- Pharmaceutical industry
- Biotechnology industry
- Nuclear power and energy plants
- Telecommunication industry
- Aerospace industry
- Movie theatre industry
- Portable residential air cleaners
- Cleanroom equipments such as biosafety cabinets, laminar air flow hoods etc
- Hospitals and Operation theaters
HEPA Filter Selection Chart | ||||||
| Model # | Dimensions (inches) | Dimensions (millimeters) | Rated Airflow | Pressure Drop (mm WG) | ||
| Cfm | M3/hr | Initial | Final | |||
| AHF1 | 12 x 12 x 6 | 305 x 305 x 150 | 125 | 212 | 25 | 60 |
| AHF2 | 12 x 12 x 12 | 305 x 305 x 305 | 250 | 424 | 25 | 60 |
| AHF3 | 24 x 24 x 6 | 610 x 610 x 150 | 500 | 850 | 25 | 60 |
| AHF4 | 24 x 24 x 12 | 610 x 610 x 305 | 1000 | 1700 | 25 | 60 |
| AHF5 | 24 x 30 x 6 | 610 x 762 x 150 | 625 | 1065 | 25 | 60 |
| AHF6 | 36 x 24 x 6 | 915 x 610 x 150 | 750 | 1275 | 25 | 60 |
| AHF7 | 48 x 24 x 6 | 1220 x 610 x 150 | 1000 | 1700 | 25 | 60 |
