Micro Fine Filters
400 INR/Unit
Product Details:
- Product Type Fine Filters
- Usage Industrial
- Size 460X460X150 MM
- Condition New
- Material PP
- Construction Wire Mesh
- Filtration Grade Ulpa Filter
- Click to View more
X
Micro Fine Filters Price And Quantity
- 400 INR/Unit
- 10 Unit
Micro Fine Filters Product Specifications
- Yes
- Wire Mesh
- Industrial
- 460X460X150 MM
- Ractangulor
- New
- Active Carbon
- Ulpa Filter
- Fine Filters
- PP
Micro Fine Filters Trade Information
- Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Cash in Advance (CID) Cheque Cash Advance (CA)
- 500 Unit Per Day
- 3-4 Days
- All India
Product Description

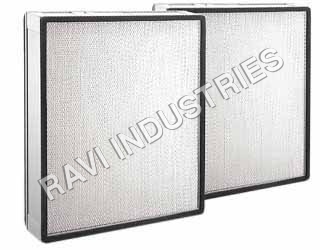

ATHLETE MICRO FINE Filters
ATHLETE Micro Fine filter are manufactured using synthetic non-woven polyester/polypropylene/nylon/glass fibre media supported by aluminium mesh, encased and sealed in Aluminium/GI/MS/SS frames. Different models are available on order for specific applications where the need is to capture particles of sizes ranging from as small as 1.0 micron to the largest of 5.0 micron with high dust holding capacity. All the filters are washable and made as per the standards confirming to ASHRAE 52.2, EUROVENT 4/9 and CEN EN779.
SPECIFICATION | |
| Efficiency | Standard fine filters have an efficiency of 99% for 5 micron size particles. Filters with varying efficiency rating to capture 1.0 micron to 5.0 micron size particles are available on order. |
| Filtration Class | Filter grades F5, F6, F7, F8, F9 of EN779, ASHRAE 52.2 equivalent MERV8, 9, 10, 11, 12, 13, 14, 15 and Eurovent EU 6, EU7, EU8 and EU9 are available |
| Frame Type | Available in deep pleated flange or box type |
| Frame Material | Standard model is constructed in Galvanized steel. Other models with Aluminium/Stainless steel frame with or without powder coating are also available on order. |
| Filter Media | By standard fine filters are made using syntheic non-woven media. Glass wool fiber or polypropylene media is also used for different grades for grades of filters. |
| Gasket | PU based expanded foam, rubber or non-woven synthetic gasket is used |
| Separators | Aluminium/GI Comb seperators are used |
| Sealant | Polyurethane/Epoxy resin sealant are used |
| Face Guard | An optional perforated metal or expanded metal guard (with or without powder coating) to protect the face of the filter, is available on request |
| Pressure Drop | Initial pressure drop ~6.5mm WG and recommended final pressure drop is ~15mm WG |
| Operating Conditions | Filter can withstand temperature up to 60oC and relative humidity of 70% |
| Application | Athlete Micro Fine filters can be used as seconary filter for HEPA filters and are most suited for: Computer Centers, Ventilation Systems, Telephone Exchanges, Air Handling Units (AHUs), Research Laboratories, Operation Theatres, Paint Shops, Nuclear Power Plants, Textile Mills, Cement Factories, Chemical and Fertilizers Plants, Mushroom Farms, Food and Beverage Industries, Pharmaceutical Industries, Biotechnology Industries, Movie Theatre Industry and Miscellaneous Industrial Ventilation. |
*High flow air filters are also available on order
Size Dimensions (inches) Dimensions (millimeters) Rated Airflow Pressure Drop (mm WG) Cfm M3/hr Initial Final AMF1 20 x 20 x 6 508 x 508 x 152 750 1275 6.5 15 AMF2 24 x 20 x 6 610 x 508 x 152 850 1445 6.5 15 AMF3 24 x 24 x 6 610 x 610 x 152 1000 1700 6.5 15 AMF4 20 x 20 x 12 508 x 508 x 305 1500 2550 6.5 15 AMF5 24 x 20 x 12 610 x 508 x 305 1750 2975 6.5 15 AMF6 24 x 24 x 12 610 x 610 x 305 2000 3400 6.5 15
Athlete Micro Fine Filter Selection Chart
*Custom build sizes offered on request
